Window systems

Versatile aluminium window systems with outstanding fabrication efficiency

heroal window systems stand out for their great flexibility and efficient fabrication. Various systems, system variants and additional components make it easy to meet individual customer needs and different technical requirements, for example on thermal insulation, accessibility and burglary resistance. A design principle across the range of systems and design depths, the utilisation of standardised parts and well-thought-out design details provide for a fast, process reliable manufacture and an extremely efficient fabrication. The material aluminium is characterised by its excellent weather resistance and material stability. It provides for a wide range of structural designs and aesthetic looks, and offers a wide variety of colours and shapes.

Go to product

Go to product

Your advantages

Variety of designs

heroal window systems are coated with the heroal hwr powder coating, providing for unique designs and colour uniformity with the heroal portfolio. The profiles are also available with roundline or classicline contour, as block window, or in a curtain wall look. Thanks to the heroal profile bending and edging service, special shapes, such as round, segmental and basket arches, can be created.

Design variants

Depending on requirements, heroal window systems can be designed as pivoting sash window, tilt-turn window, window with fixed sash, and also as barrier-free opening element or French window element.

Thermal insulation

Thanks to flexible combinations of profiles with or without PU foam, standard or highly insulating (HI) glazing seals and central seals, it is easy to adapt the thermal insulation values to the building project. The heroal foam filling process ensures a 100% filling of the insulation chamber and provides for perfect thermal efficiency.

System compatibility

heroal window systems are compatible with the heroal system portfolio, and can be combined with the ventilation flap heroal W 72 VF, the heroal window rebate ventilation, and different threshold solutions.

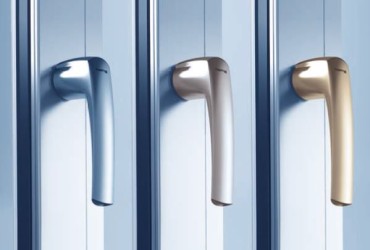

Fitting portfolio

With its modern handle designs, the fitting portfolio heroal WF offers a great freedom of design. Thanks to the universal fitting groove, different fittings can be selected as required.

Universal punch

Most machining of the profiles of heroal window systems can be done with the universal punch, resulting in significantly shorter manufacturing times and lower tooling cost.

Design principle across the range of systems and design depths

The design principle of frame and sash profiles across the range of systems and design depths, as well as identical tools, provide for a reliable, fault-tolerant manufacture and reduced inventory cost.

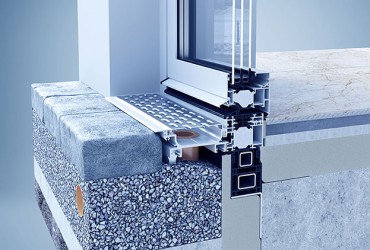

heroal sealing technology

Thanks to the heroal sealing technology, windows with different thermal insulation requirements can be manufactured with identical machine settings and manufacturing steps.

Reduced inventory cost

Since the same parts are used for different frame and sash profiles, inventory cost can be minimised.

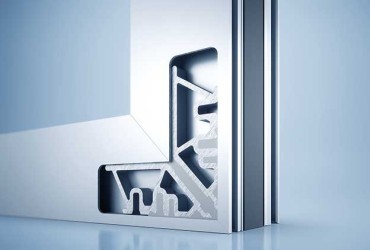

Connection technology

The innovative connection technology with nailable and compressible corner angles, connector screws and sealant injection ensures a fault-tolerant, process reliable manufacture.

Which window system is right for me?

Here you can see an overview of the different heroal window systems. You can also compare the dimensions and features (tightness, soundproofing, burglary resistance, etc.) of the individual systems.

heroal W 77

heroal W 77

The window system for today and tomorrow

heroal W 77 HI

A window system to meet present and future needs

heroal W 77 i

The block window system for today and tomorrow

heroal W 77 PH

The window system with passive-house certification

System comparison: heroal W 77

heroal W 77
heroal W 77 HI
heroal W 77 i
heroal W 77 PH

  • System dimensions
    Profile depth [mm]
    Frame profile
    heroal W 77 77 heroal W 77 HI 77 heroal W 77 i 77 heroal W 77 PH 77
    Leaf profile
    heroal W 77 89 heroal W 77 HI 89 heroal W 77 i 84 heroal W 77 PH 89
    Bar profile
    heroal W 77 77 heroal W 77 HI 77 heroal W 77 i 77 heroal W 77 PH 77
    Visible profile width [mm] [mm]
    Frame profile
    heroal W 77 50 - 250 heroal W 77 HI 50 - 250 heroal W 77 i 70 - 140 heroal W 77 PH 70 - 250
    Leaf profile
    heroal W 77 33 - 67 heroal W 77 HI 33 - 67 heroal W 77 i 11 heroal W 77 PH 43
    Bar profile
    heroal W 77 74 - 254 heroal W 77 HI 74 - 254 heroal W 77 i 94 - 194 heroal W 77 PH 164
    Casement profi e variations
    Push rod fitting groove [SBN]
    heroal W 77 --- heroal W 77 HI . heroal W 77 i . heroal W 77 PH .
    Plastic fitting groove [KBN]
    heroal W 77 --- heroal W 77 HI . heroal W 77 i . heroal W 77 PH .
    System properties
    Max. leaf weight [kg]
    heroal W 77 300 heroal W 77 HI 300 heroal W 77 i 300 heroal W 77 PH 300
    Glass filling strength [mm]
    heroal W 77 58 heroal W 77 HI 66 heroal W 77 i 64 heroal W 77 PH 66
    Max. leaf widths [mm]
    heroal W 77 --- heroal W 77 HI 1.600 heroal W 77 i 1.200 heroal W 77 PH 1.600
    Max. leaf heights [mm]
    heroal W 77 2.800 heroal W 77 HI 2.800 heroal W 77 i 2.400 heroal W 77 PH 2.800

  • System properties
    Thermal insulation [Uf in W/m2K] / Profile width [mm]
    heroal W 77 --- heroal W 77 HI 0,95/120 heroal W 77 i 1,0/101 heroal W 77 PH 0,78/180
    Air permeability
    heroal W 77 --- heroal W 77 HI 4 heroal W 77 i 4 heroal W 77 PH 4
    Resistance to driving rain
    heroal W 77 --- heroal W 77 HI 9A heroal W 77 i 9A heroal W 77 PH 9A
    Wind resistance
    heroal W 77 --- heroal W 77 HI C5/B5 heroal W 77 i C5/B5 heroal W 77 PH C5/B5
    Soundproofing class
    heroal W 77 --- heroal W 77 HI 1-5 heroal W 77 i 1-5 heroal W 77 PH 1-5
    Resistance to burglary
    heroal W 77 --- heroal W 77 HI RC 3 heroal W 77 i RC 2 heroal W 77 PH bis RC 3
    Operating forces
    heroal W 77 --- heroal W 77 HI 1 heroal W 77 i 1 heroal W 77 PH 1
    Impact resistance
    heroal W 77 --- heroal W 77 HI 5 heroal W 77 i 5 heroal W 77 PH 5
    Load-bearing capacity of safety equipment
    heroal W 77 - heroal W 77 HI ✔ heroal W 77 i ✔ heroal W 77 PH ✔
    Continuous function
    heroal W 77 --- heroal W 77 HI 3 heroal W 77 i 3 heroal W 77 PH 3

heroal W 72

heroal W 72

The complete window system for every application

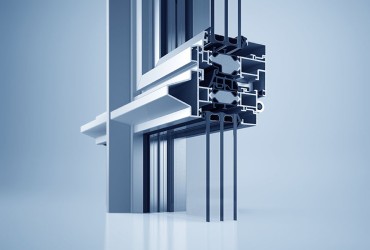

heroal W 72 CW

Variant of the heroal W 72 window system in curtain wall design

heroal W 72 CL

Variant of heroal W 72 window system with chamfered contour

heroal W 72 i

The complete block window system for every application

heroal W 72 RL

Variant of the heroal W 72 window system with rounded contour

heroal W 72 VF

Filigree ventilation flap heroal W 72 VF

System comparison: heroal W 72

heroal W 72
heroal W 72 CW
heroal W 72 CL
heroal W 72 i
heroal W 72 RL
heroal W 72 VF

  • System dimensions
    Profile depth [mm]
    Frame profile
    heroal W 72 72 heroal W 72 CW 72/106 heroal W 72 CL 82 heroal W 72 i 72 heroal W 72 RL 82 heroal W 72 VF 72
    Leaf profile
    heroal W 72 84 heroal W 72 CW 72 / 102-106 heroal W 72 CL 84 heroal W 72 i 72 heroal W 72 RL 84 heroal W 72 VF 84
    Bar profile
    heroal W 72 72 heroal W 72 CW 76,5 - 84 heroal W 72 CL 82 heroal W 72 i 76,5 / 79 heroal W 72 RL 82 heroal W 72 VF
    Visible profile width [mm] [mm]
    Frame profile
    heroal W 72 50 - 250 heroal W 72 CW 28 / 38-50 heroal W 72 CL 60 - 154 heroal W 72 i 70 - 120 heroal W 72 RL 60 - 154 heroal W 72 VF 50-250
    Leaf profile
    heroal W 72 33 - 67 heroal W 72 CW verdeckt / 33-43 heroal W 72 CL 33 - 43 heroal W 72 i verdeckt heroal W 72 RL 33 - 43 heroal W 72 VF 170/250
    Bar profile
    heroal W 72 74 - 254 heroal W 72 CW 50 heroal W 72 CL 74 - 94 heroal W 72 i 114 - 244 heroal W 72 RL 74 - 94 heroal W 72 VF ---
    Casement profi e variations
    Push rod fitting groove [SBN]
    heroal W 72 . heroal W 72 CW . heroal W 72 CL . heroal W 72 i . heroal W 72 RL . heroal W 72 VF .
    Plastic fitting groove [KBN]
    heroal W 72 . heroal W 72 CW . heroal W 72 CL . heroal W 72 i . heroal W 72 RL . heroal W 72 VF -
    System properties
    Max. leaf weight [kg]
    heroal W 72 300 heroal W 72 CW 300 heroal W 72 CL 300 heroal W 72 i 300 heroal W 72 RL 300 heroal W 72 VF 100
    Glass filling strength [mm]
    heroal W 72 66 heroal W 72 CW 64 heroal W 72 CL 58 heroal W 72 i 48 heroal W 72 RL 58 heroal W 72 VF ---
    Max. leaf widths [mm]
    heroal W 72 1.600 heroal W 72 CW 1.600 heroal W 72 CL 1.600 heroal W 72 i 1.200 heroal W 72 RL 1.600 heroal W 72 VF ---
    Max. leaf heights [mm]
    heroal W 72 2.800 heroal W 72 CW 2.800 heroal W 72 CL 2.800 heroal W 72 i 2.400 heroal W 72 RL 2.800 heroal W 72 VF 3000

  • System properties
    Thermal insulation [Uf in W/m2K] / Profile width [mm]
    heroal W 72 1,3/120 heroal W 72 CW 1,3/120 heroal W 72 CL 1,3/120 heroal W 72 i 1,5/97 heroal W 72 RL 1,3/120 heroal W 72 VF >0,87
    Air permeability
    heroal W 72 4 heroal W 72 CW 4 heroal W 72 CL 4 heroal W 72 i 4 heroal W 72 RL 4 heroal W 72 VF 4
    Resistance to driving rain
    heroal W 72 9A heroal W 72 CW 9A heroal W 72 CL 9A heroal W 72 i 9A heroal W 72 RL 9A heroal W 72 VF E1200
    Wind resistance
    heroal W 72 C5/B5 heroal W 72 CW C5/B5 heroal W 72 CL C5/B5 heroal W 72 i C5/B5 heroal W 72 RL C5/B5 heroal W 72 VF C5/B5
    Soundproofing class
    heroal W 72 1-5 heroal W 72 CW --- heroal W 72 CL 1-5 heroal W 72 i 1-5 heroal W 72 RL 1-4 heroal W 72 VF ---
    Resistance to burglary
    heroal W 72 RC 3 heroal W 72 CW --- heroal W 72 CL RC 3 heroal W 72 i RC 2 heroal W 72 RL RC 3 heroal W 72 VF RC 2
    Operating forces
    heroal W 72 1 heroal W 72 CW 1 heroal W 72 CL 1 heroal W 72 i 1 heroal W 72 RL 1 heroal W 72 VF 1
    Impact resistance
    heroal W 72 3 heroal W 72 CW --- heroal W 72 CL 5 heroal W 72 i 5 heroal W 72 RL 3 heroal W 72 VF 2
    Load-bearing capacity of safety equipment
    heroal W 72 ✔ heroal W 72 CW ✔ heroal W 72 CL ✔ heroal W 72 i ✔ heroal W 72 RL ✔ heroal W 72 VF -
    Continuous function
    heroal W 72 3 heroal W 72 CW --- heroal W 72 CL 2 heroal W 72 i 2 heroal W 72 RL 2 heroal W 72 VF ---

heroal W 65

heroal W 65

The efficient window system for applications without high insulation requirements

heroal W 65 FP

Fire prevention window for Austria and the Netherlands

System comparison: heroal W 65

heroal W 65
heroal W 65 FP

  • System dimensions
    Profile depth [mm]
    Frame profile
    heroal W 65 65 heroal W 65 FP 65
    Leaf profile
    heroal W 65 75 heroal W 65 FP 75
    Bar profile
    heroal W 65 65 heroal W 65 FP 65
    Visible profile width [mm] [mm]
    Frame profile
    heroal W 65 50 - 154 heroal W 65 FP 60 - 154
    Leaf profile
    heroal W 65 33 - 67 heroal W 65 FP 38 - 95
    Bar profile
    heroal W 65 74 - 254 heroal W 65 FP 84 - 254
    Casement profi e variations
    Push rod fitting groove [SBN]
    heroal W 65 . heroal W 65 FP none
    Plastic fitting groove [KBN]
    heroal W 65 . heroal W 65 FP .
    System properties
    Max. leaf weight [kg]
    heroal W 65 300 heroal W 65 FP 130
    Glass filling strength [mm]
    heroal W 65 58 heroal W 65 FP 58
    Max. leaf widths [mm]
    heroal W 65 --- heroal W 65 FP ---
    Max. leaf heights [mm]
    heroal W 65 2.400 heroal W 65 FP 1.955

  • System properties
    Thermal insulation [Uf in W/m2K] / Profile width [mm]
    heroal W 65 > 2,5/120 heroal W 65 FP ---
    Air permeability
    heroal W 65 4 heroal W 65 FP 4
    Resistance to driving rain
    heroal W 65 9A heroal W 65 FP 9A
    Wind resistance
    heroal W 65 C5/B5 heroal W 65 FP C5/B5
    Soundproofing class
    heroal W 65 1-5 heroal W 65 FP 1-5
    Resistance to burglary
    heroal W 65 RC 3 heroal W 65 FP RC 3
    Operating forces
    heroal W 65 1 heroal W 65 FP ---
    Impact resistance
    heroal W 65 5 heroal W 65 FP ---
    Load-bearing capacity of safety equipment
    heroal W 65 ✔ heroal W 65 FP -
    Continuous function
    heroal W 65 2 heroal W 65 FP ---

Window fittings and accessories

heroal WF

Window fittings

heroal window rebate ventilation

Self-regulating ventilation for the window rebate
